Products - Type 65 Movable Partition

Highlights

* .65mm thickness panel, Max height up to 4500mm.
* Top supported without floor track or guide.
* Clear anodized extruded aluminum tracks and frames, customized powder coated color are available.
* Sound insulation coefficient :STC 32db to 45db, ASTM standard of acoustic.
* Available in wide range of finishes.
* Fast delivery and Rich experiences in oversea project installation guide & supervision.

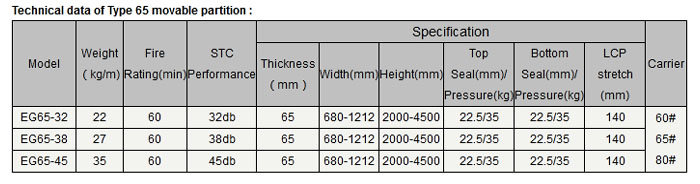

Type 65 Specifications

Type 65 Movable wall partition is made of high quality anodized aluminum frame with environmentally composite materials.the panels move on a ceiling track with no requirement of floor guides or rails.,the panel has a standard thickness of 65mm and a width up to 1219mm. Maximum height can reach 4500mm tall.

The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals, it provides excellent acoustic insulation property of maximum STC-45 in laboratory setting. Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant, schools, office, religion, hospitals, shopping arcades & many other indoor applications product.

There are wide of range face finishes are available :melamine faced MDF or Plywood, fabric ,carpet, fabric, artificial, leather, wood veneer, high pressure laminate, Formica, acoustic panel, white boad etc.,panels may also be supplied unfinished for field decoration, Standard frame color is clear anodized aluminum, custom powder coating colors are available.

We work with Architects, designer, developers, contractors & owners in design product selection, decorative finishes, project management & after-sales warranty services as the one-stop solution business service

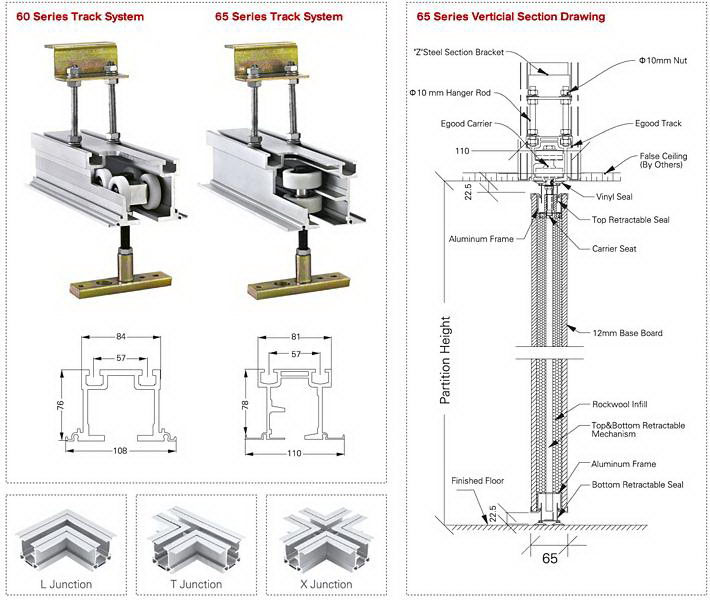

Track Systems

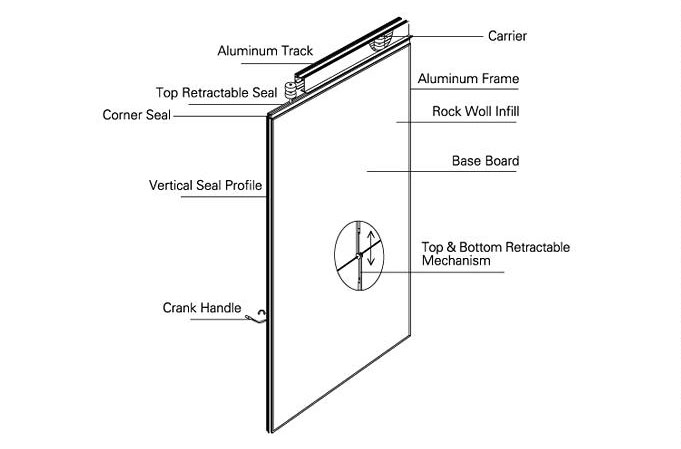

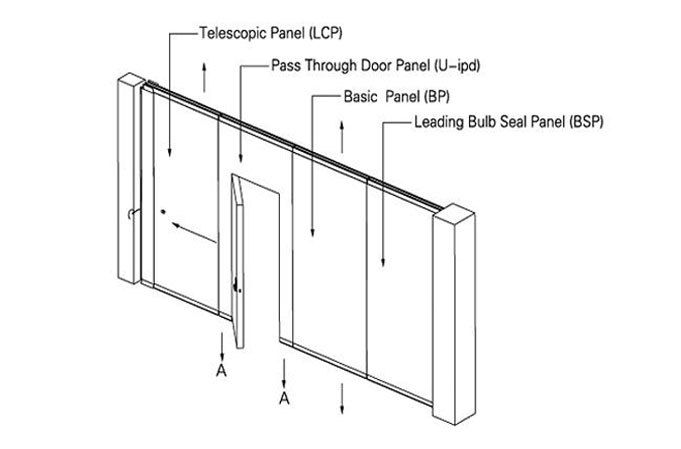

3D Views
